Customize Li-Ion 18650 Battery: 7.4V 2200mAh Battery Module (1.32) with Dean Connector & customer CE certification

Customize Li-Ion 18650 Battery: 7.4V 2200mAh (16.28wh) Battery Module with Dean Connector


Packing

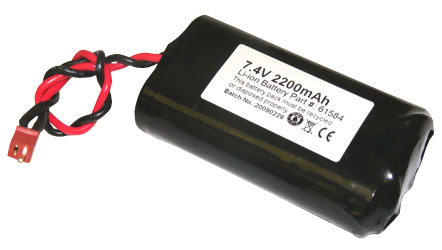

  • Customize High quality 7.2V 2.2Ah Li-Ion rechargeable battery Module CE certified for customer is made of 2 pcs 2200mAh cylindrical 18650 cells with a PCB on end
  • Packed side by side with 2 in series
  • Wrapped by PVC heat shrink tube
  • All bare wire must be cover by shrink tube
Voltage Voltage: 7.4 V (working) 8.4 V ( peak) 5.5 V ( cut-off)
Capacity 2200 mAh or 16.3 wh
Protection
  • One PCB installed with the battery pack and protects the battery from
    • Overcharge (>8.4V)
    • Overdischarge ( <5.5V)
    • Over drain ( > 7 Amp)
    • Short circuits
  • One 2 Amp polyswitch installed to limit max. discharging current and to protect wrong polarity
Prewired

4.0" 20 AWG twisted wire with Micro Dean connector (P/N: 1221). Red Wire = Positive to male prong

Charging rate 1 A ( recommended ), 2 A max.
Max. Discharging Rate 2 Amp limited by polyswitch ( lower rate available upon request )
Dimensions

70mm(2.7") x 37mm(1.45") x 20mm(0.8")

Weight 3.5 oz
Smart Tips
Warning
  • Li-Ion Battery may explode if charging or discharging improperly. User must have knowledge on how to charge and discharge Li-Ion battery before making Li-Ion Battery Pack.
  • For safety warning please see the link here
Price: $29.85
