Custom Li-Ion Polymer Battery Pack: 14.8V 750mAh (11.1wh) w/ PCB (0.9)

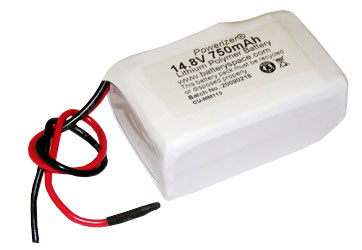

Custom Li-Ion Polymer Battery: 14.8V 750mAh (11.1wh) w/ PCB (CU-MM115 PID# 4967)


  • Customize 14.8V 750 mAh Polymer Li-Ion technology battery pack made by 4 pcs Polymer Li-Ion cell of 3.7V 750mAh with PCB & Polyswitch
    • packaged one on top of another, 4 cell stack, Thin PVC
  • Voltage: 14.8v (working) 16.8V ( peak)
  • Capacity: 750mAh
  • Max. Discharging rate: 4 Amp
  • One 5A PCB (IC ) installed with the battery pack to protect battery from
    • Over-charging (16.8V)
    • Over-discharging ( <11V)
    • Short circuit
  • One 4A polyswitch installed in battery pack to limit discharging current < 4 A
  • Light weight : 3.0 Oz (75grams)
  • Dimension (LxWxH): 2.0"(51mm) x 1.3"(34mm) x 0.9"(24mm)
  • 4" 22 AWG open end wire coming out of one pack
  • You may choose our 0.5A Smart Li-Ion battery charger to recharge the battery pack . The estimated charging time is 1.5 hours

Price: $95.00
