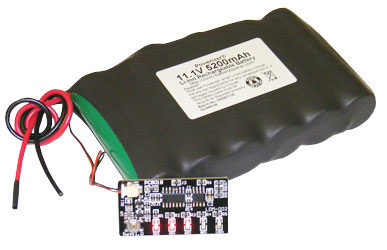

Custom Li-Ion 18650 11.1v 5200mAh (56.72Wh) Flat Pack with PCB & Fuel Gauge (4.68)

Custom Li-Ion 18650 Battery: 11.1v 5200mAh (56.72Wh) w/ PCB & Fuel Gauge (CU-MM108 PID# 4758)


Packing
  • Made by 6 pcs 2600mAh 18650 Li-Ion cells, (3S2P)
  • Wrapped by heavy duty Heat shrink tube
Voltage Voltage: 11.1v(working) 12.6v(peak) 7.5v( cut-off)
Capacity 5200 mAh min.
Protection
  • One PCB with fuel gauge socket (10A) installed with the battery pack and protects the battery from
    • Overcharge (>12.6V)
    • Overdischarge (<7.5 V)
    • Over drain (>10 Amp)
    • Short circuits
  • 7 Amp polyswitch installed to limit max. discharging current and to protect wrong polarity
Prewired
Max. Discharging Rate 7 Amp limited by polyswitch ( lower rate available upon request )
Dimensions

5.3"(135mm)L x 3.5"(90mm) W x 0.8"(21mm) H

Weight 498g (1.1Lb)
Smart Tips

Warning
  • Please note this battery is for R&D use only and NOT for individual customers. We are not responsible for any damages or losses caused by misusing (included but not limited to: miss-charging, miss-discharging, any changes of this battery pack, miss-assembling batterypacks)
  • Must read before place an order. Please download fill the form and fax back to 510-525-4728. Attn: BatteySpace-Tech.
  • For safety warning please see the link here

Price: $107.45
