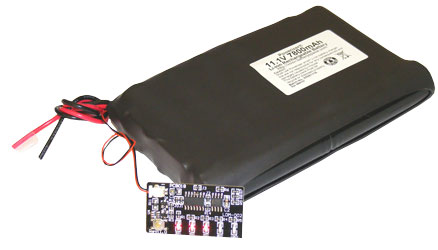

Custom Li-Ion 18650 11.1v 7.8Ah (86.58Wh) with PCB & Fuel Gauge (7.02)

Custom Li-Ion 18650 11.1v 7.8Ah (86.58Wh) with PCB & Fuel Gauge (CU-MM107 PID# 4759)


Packing
  • 11.1v Li-Ion rechargeable battery made of 9 pcs 18650 2600mAh Li-Ion cells (3S3P) with PCB and polyswitch for full protection
  • The battery pack is wrapped by heavy duty heat shrink
Voltage Voltage: 11.1v(working) 12.6v(peak) 7.5v(cut-off)
Capacity 7800mAh (86.58wh)
Protection
  • One PCB (10A) installed with the battery pack and protects the battery from
    • Overcharge (>12.6v)
    • Overdischarge (<7.5v)
    • Over drain (>10Amp)
    • Short circuits
  • One 7.0 Amp polyswitch installed to limit max. discharging current at 8.4 A and to protect wrong polarity
Prewired
Max. Discharging Rate 7 Amp limited by one polyswitch
Dimensions

3.75" L x 2.8" W x 1.5" H

Weight 16 oz
Smart Tips
Warning
  • Li-Ion battery may be exploded if mis-using. We are not responsible for any damages or losses caused by misusing (included but not limited to: mis-charging, mis-discharging, any changes of this battery pack, mis-assembling batterypacks) .
  • Always charge battery with attention. Battery pack shall be placed on a fire-proof place to avoid any accident
  • Please check battery polarity before plug battery into light. Never make wrong polarity connection. Please check
  • For safety warning please see the link here

Price: $174.05
Buy Product Online | Visit Store Home
