Cordless Wrist Strap--static dissipative without grounding cord

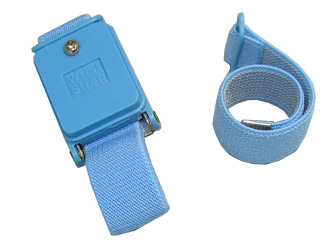

The antistatic cordless wrist strap is a device used to prevent electrostatic discharge (ESD) by safely grounding a person working on electronic equipment. It consists of a stretchy band of fabric with fine conductive fibers woven into it. The fibers are usually made of carbon or carbon-filled rubber, and the strap is bound with a stainless steel clasp or plate. They are usually used in conjunction with an anti-static mat on the workbench, or a special static-dissipating plastic laminate on the workbench surface. Attached a elastic band for replacement Point A: Screw Point B: Stainless steel Point C: Conductive Fabric Easy procedure for effectiveness testing Test-point pair Electric Resistance Good A-B 106Ohm < R < 107Ohm A-C 106Ohm < R < 107Ohm B-C 102 Ohm < R < 107Ohm Bad A-B R>107Ohm re-inspect B-C R>107Ohm replace wrist strap
