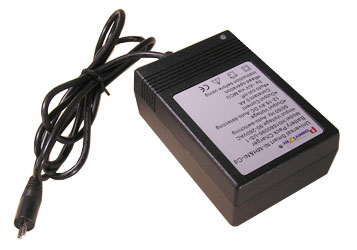

- It is Universal Smart Charger for any NiMH /NiCd battery packs from 7.2V-12V
- 90-260V AC input for world wide voltage support.
- Compact size, directly plug in without power cord, and easy to carry.
- Charging current is 600 mA
- Designed for slow charging 7.2V-12V NiMH and NiCd Battery Packs. Built in IC will regonize battery pack voltage ( from 7.2V- 12V ) automatically without setting.
- Idea for RC air battery pack and battery pack with capacity < 4000 mAh
- Using Pulse and Negative pulse technology ( 10% negative puls ) to avoid battery overheating and polarized during fast charging, Significantly increasing battery pack's cycle life.
- Automatically detect battery pack's voltage, Red LED will be on during charging.
- Automatically cut-off by negative delta V when battery pack get fully charged.
- Charging time from approx. 30 mins to 100 mins depending on the capacity of battery.
- For 3000 mAh battery pack, charging time is about 5 hours
- for 2000 mAh battery pack , charging time is 3.5hours.
- For 600mAh battery pack , charging timer is about 1.2 hrs
- One standard Two pins male universal connector installed with the charger
- It is very smart charger. You don't need take care anything, just plug in and wait for battery charging ready
- Size: 3.2"L x 2.1"W x 2.8"H
- Weight: 4.3oz.
Operation Instruction:
-
Connect battery pack to output connector and plug AC power source
-
Make sure battery polarity is connected correctly (Red wire is positive)
-
When the unit connect the AC source, the red LED and green LED flash for two times, then all off.
-
After it connect the correct battery pack, the red LED will be on, shows that it is charging.
-
After battery is fully charged, green LED will be on and it shows the battery fully charged.
Precautions:
- Please don't use the charger for low capacity battery pack (<600mah). We are not responsible for any damage caused by charging other brand battery using this charger.
Smart Tip:
Via a battery holder ( 6- 10 cells) , you can use this smart charger to recharge a group single cell ( 6- 10 pcs ).
|
