Compact Battery Balance Charger for 7.4V- 11.1V Li-Ion pack

Compact Battery Balance Charger for 7.4V- 11.1V Li-Ion pack

Feature

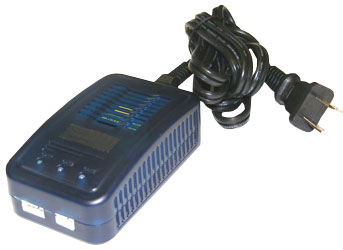

Compact Balance Charger designed for 7.4V-11.1V Li-Ion battery, especially for recharging below Hi-Power polymer Li-Ion Battery packs without PCB for RC Car and RC Airplane to get better power balance than conventional smart charger.
Input : 110-240V AC 50/60Hz USA plug
- Need international AC plug? Please click here to order
Output: Two JST male sockets installed in the charger for recharging 7.4V(2S) and 11.1V(3S) Li-Ion pack separately
- 3 pins male JST socket for charging 2 cells (2S) pack (7.4V pack)
- 4 pins female JST socket for charging 3 cells (3S) pack (11.1V pack)
  - Note: Please do not charge 2S/3S pack at the same time
Charging Voltage: 8.4V +/-0.06V for 2S pack, 12.6V+/-0.1V for 3S pack
Balance each cell voltage is or less than 30mV
Charging current: 650mA
Three LED (Cell1, Cell2 and Cell3) indicate different status
- Orange LED = Power On
- Green LED = Stand By / Full
- Red LED = Charging
- Red Flashing LED = Fault
Dimension (LxWxH): 3.9"(98 mm) x 2.3"(58mm) x 1.3"(33mm)
Weight: 193g (6.8Oz)
Warning: In order to use the smart balance charger, Li-Ion battery pack must be used with the charging terminal from individual cells as indicated below:
- For 7.4V(2S) pack's charging terminal, please click here to order 3 pin Female JST connector seperately.
- For 11.1V(3S) pack's charging terminal, please click here to order 4 pin Female JST connector seperately.

Circuit diagram for charging 7.4V Li-ion pack

Circuit diagram for charging 11.1V Li-ion pack

How to charge the 11.1V Hi-Power li-ion pack with 4 pin Female JST Charging plug

Price: $17.95
Buy Product Online | Visit Store Home
