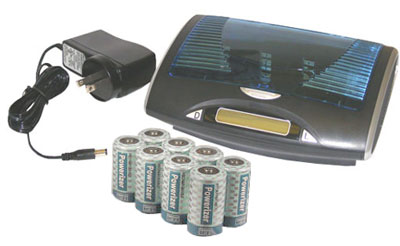

CH-V9688 Computer Controlled Superfast Universal LCD Smart Charger + 8 pcs D size 10 Ah NiMH Batteries

CH-V9688 Computer Controlled Superfast Universal LCD Smart Charger + 8 pcs D size 10 Ah NiMH Batteries


  • One CH-V9688 Computer Controlled Super fast Universal LCD Smart Charger for All Size NiMH cells with USB plug --- CE listed
    • Computer Controlled Super fast Universal LCD Smart Charger for All Size NiMH cells with USB plug for All Size NiMH rechargeable cells (AA/AAA/C/D/9V)
    • Special designed with LCD Battery Indicator & discharge function
    • Discharge function for AA/AAA/C/D NiMH Cell reduces memory effect and enables full discharge for longer battery life cycle
      • Discharge current: 400mA
    • Built-in switching power technology for woridwide (100-240V AC) use with USA AC plug.
    • Recharge 1pc to 4 pcs of AA/AAA/C/D NiMH batteries and 1 to 2 pcs of 9V NiMH cell at a time
    • 4 individual charging channels for AA/AAA/C/D and 2 individual charging channels for 9V cells
    • Intelligent Microprocessor Controlled - Batteries life well protected by negative delta V cut-off function and timer protection
    • Defective and Non-Rechargeable cell protection
    • Automatic charging current selection for AA / AAA / C / D /9V NiMH rechargeable batteries
    • Built-in 5V USB Output port (Output: 5VDC 500mA Max) on the back side of charger
      • Design for charge and power up your Digital device
      • A Perfect AC-DC Adaptor:110-240V AC to 5.0V 500mA Max
      • Caution for USB port
        • The USB socket can be used only when the charger is plugged-into the AC outlet and no batteries are charged
        • The USB socket cannot be used when the charging process is running.
        • When the Green Light (USB) turns on, the USB socket is ready for use.
        • Make sure the maximum loading is not exceeding 500mA on the USB socket.
    • Electric LCD display with Blue Color backlight and designed for
      • Battery Charging status indication
      • Battery Discharging status indication
      • When the batteries are fully charged, the charger will change to Trickle mode automatically and the Blue color "Backlight" will turn off after 2.5 hours
      • A "Backlight Button" is designed to turn on the backlight for 10sec during the night time.
    • Safety Feature
      • Negative delta V cut-off function
      • Safety timer to prevent over charge
      • Bad cell Detection
      • Reverse-polarity protection
      • Short circuit protection
    • Please click here to download the instruction manual of the charger
    • CE listed
  • Included 8 pcs of Powerizer D 10000 mAh rechargeable batteries

Excluded Powerizer 9.0V NiMH cell located in the charger

How to charge Excluded AAA / Excluded AA / Excluded C / Included D Powerizer NiMH cell

How to connect to 12.0VDC 5.5mmx2.5mm Barrel female input port by included AC to DC adaptor

Back view of charger: 12.0VDC 5.5mmx2.5mm barrel female input and 5.0VDC 500mA Max USB female output

Definition for LCD Screen

LCD Screen of the charger
Price: $94.25
