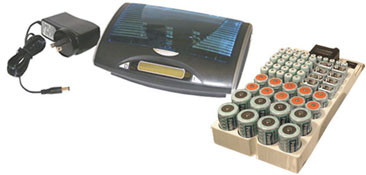

Those batteries cluttering up drawers in your home-are they good, dead, or what? This battery rack lets you store and organize all unused household batteries in one handy place, and even includes a built-in battery tester so you know which ones you shouldn't even bother storing! Stores up to 66 batteries (AA, AAA, C, D, 9v, and Button Cell sizes), and even has labels for "charged" or "discharged" rechargeable batteries. Housing fits drawer, cupboard, or can be wall-mounted (screws included). Battery Rack with Tester meter! Mounting hardware included.
One Battery Rack 66 can hold up to:
About 61 NIMH Rechargeable Batteries:
- Various sizes of high quality Powerizer NiMH batteries are included (61 pcs) for your every application:
Testing batteries:
- Batteries maybe tested with the meter/tester in the rack, or it may be removed from the rack for convenience.
- To test AAA, AA, C, D and Button Cell Batteries, lift the arm of the tester and place the battery so that the bottom touches the contact in the swing arm. This is shown in the line drawing on the rack.
- To test 9V batteries hold the contacts against the meter terminals on the right. There are one large and one smaller hole that match the 9V battery contacts.
Warning:
- Dispose old batteries promptly and properly.
- Keep batteries out of the reach of children.
- Swallowing a button cell battery is extremely dangerous.
About the One CH-V9688 Computer Controlled Super fast Universal LCD Smart Charger for All Size NiMH cells with USB plug --- CE listed
- Computer Controlled Super fast Universal LCD Smart Charger for All Size NiMH cells with USB plug for All Size NiMH rechargeable cells (AA/AAA/C/D/9V)
- Special designed with LCD Battery Indicator & discharge function
- Discharge function for AA/AAA/C/D NiMH Cell reduces memory effect and enables full discharge for longer battery life cycle
- Built-in switching power technology for woridwide (100-240V AC) use with USA AC plug.
- Recharge 1pc to 4 pcs of AA/AAA/C/D NiMH batteries and 1 to 2 pcs of 9V NiMH cell at a time
- 4 individual charging channels for AA/AAA/C/D and 2 individual charging channels for 9V cells
- Intelligent Microprocessor Controlled - Batteries life well protected by negative delta V cut-off function and timer protection
- Defective and Non-Rechargeable cell protection
- Automatic charging current selection for AA / AAA / C / D /9V NiMH rechargeable batteries
- Built-in 5V USB Output port (Output: 5VDC 500mA Max) on the back side of charger
- Design for charge and power up your Digital device
- A Perfect AC-DC Adaptor:110-240V AC to 5.0V 500mA Max
- Caution for USB port
- The USB socket can be used only when the charger is plugged-into the AC outlet and no batteries are charged
- The USB socket cannot be used when the charging process is running.
- When the Green Light (USB) turns on, the USB socket is ready for use.
- Make sure the maximum loading is not exceeding 500mA on the USB socket.
Electric LCD display with Blue Color backlight and designed for
- Battery Charging status indication
- Battery Discharging status indication
- When the batteries are fully charged, the charger will change to Trickle mode automatically and the Blue color "Backlight" will turn off after 2.5 hours
- A "Backlight Button" is designed to turn on the backlight for 10sec during the night time.
Safety Feature
- Negative delta V cut-off function
- Safety timer to prevent over charge
- Bad cell Detection
- Reverse-polarity protection
- Short circuit protection
 Please click here to download the instruction manual of the charger
CE listed
|
Included Powerizer 9.0V NiMH cell located in the charger |
How to charge Included AAA / Included AA / Included C / Included D Powerizer NiMH cell |
How to connect to 12.0VDC 5.5mmx2.5mm Barrel female input port by included AC to DC adaptor |
|
Back view of charger: 12.0VDC 5.5mmx2.5mm barrel female input and 5.0VDC 500mA Max USB female output |
Definition for LCD Screen |
|
