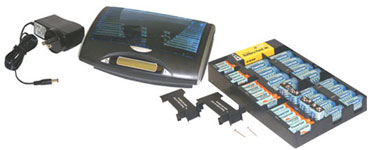

About 40 NIMH Rechargeable Batteries
Total 40 cells included.
The batteries can be rechargeable up to 1000 times and save you big money
Must have for Electronic Lab , and family that uses a lot of battery for toy
About One Battery Rack 40 - Battery Organizer with Battery Tester + AA Battery adaptors --- hold up to 46 cells
- Those batteries cluttering up drawers in your home-are they good, dead, or what? This battery rack lets you store and organize all unused household batteries in one handy place, and even includes a built-in battery tester so you know which ones you shouldn't even bother storing! Stores up to 46 batteries (AA, AAA, C, D, 9v Block Sizes).
- Size: 12" (305mm) x 7.125" (181mm) x 2.0" (51mm)
- Weight is: 0.8lb (363g)
 Please click here to download user manual
- Please click here to download instruction for AA Battery Adaptor
- Housing fits drawer, cupboard, or can be wall-mounted (screws included). A Battery tester is built in Battery Rack
- A battery rack which can hold up to 40 cells, e,g
- 8 pcs - AAA batteries
- 12 pcs OR 26- AA batteries
- Hold up more 14 cells because the 2 pcs AA adaptor located on C size battery section (7 cells per each section)
- 4 pcs - 9V block batteries
- 8 pcs OR 0 pc - C batteries
- Hold down to 0 cell because C size battery section was located by 2pcs AA adaptor
- 8 pcs - D batteries
About the One CH-V9688 Computer Controlled Superfast Universal LCD Smart Charger for All Size NiMH cells with USB plug --- CE listed
- Computer Controlled Super fast Universal LCD Smart Charger for All Size NiMH cells with USB plug for All Size NiMH rechargeable cells (AA/AAA/C/D/9V)
- Special designed with LCD Battery Indicator & discharge function
- Discharge function for AA/AAA/C/D NiMH Cell reduces memory effect and enables full discharge for longer battery life cycle
- Built-in switching power technology for woridwide (100-240V AC) use with USA AC plug.
- Recharge 1pc to 4 pcs of AA/AAA/C/D NiMH batteries and 1 to 2 pcs of 9V NiMH cell at a time
- 4 individual charging channels for AA/AAA/C/D and 2 individual charging channels for 9V cells
- Intelligent Microprocessor Controlled - Batteries life well protected by negative delta V cut-off function and timer protection
- Defective and Non-Rechargeable cell protection
- Automatic charging current selection for AA / AAA / C / D /9V NiMH rechargeable batteries
- Built-in 5V USB Output port (Output: 5VDC 500mA Max) on the back side of charger
- Design for charge and power up your Digital device
- A Perfect AC-DC Adaptor:110-240V AC to 5.0V 500mA Max
- Caution for USB port
- The USB socket can be used only when the charger is plugged-into the AC outlet and no batteries are charged
- The USB socket cannot be used when the charging process is running.
- When the Green Light (USB) turns on, the USB socket is ready for use.
- Make sure the maximum loading is not exceeding 500mA on the USB socket.
Electric LCD display with Blue Color backlight and designed for
- Battery Charging status indication
- Battery Discharging status indication
- When the batteries are fully charged, the charger will change to Trickle mode automatically and the Blue color "Backlight" will turn off after 2.5 hours
- A "Backlight Button" is designed to turn on the backlight for 10sec during the night time.
Safety Feature
- Negative delta V cut-off function
- Safety timer to prevent over charge
- Bad cell Detection
- Reverse-polarity protection
- Short circuit protection
Please click here to download the instruction manual of the charger
CE listed
|
Included Powerizer 9.0V NiMH cell located in the charger |
How to charge Included AAA / Included AA / Included C / Included D Powerizer NiMH cell |
How to connect to 12.0VDC 5.5mmx2.5mm Barrel female input port by included AC to DC adaptor |
|
Back view of charger: 12.0VDC 5.5mmx2.5mm barrel female input and 5.0VDC 500mA Max USB female output |
Definition for LCD Screen |
|
LCD Screen of the charger |
|
