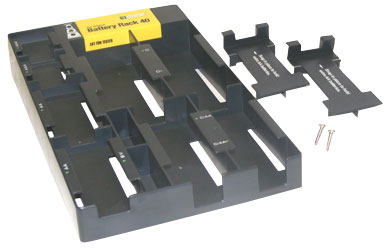

Those batteries cluttering up drawers in your home. Are they good, dead, or what? This battery rack lets you store and organize all unused household batteries in one handy place, and even includes a built-in battery tester so you know which ones you shouldn't even bother storing! Stores up to 46 batteries (AA, AAA, C, D, 9v Block Sizes).
Housing fits drawer, cupboard, or can be wall-mounted (screws included). Battery Rack with Tester meter!
Size: 12" (305mm) x 7.125" (181mm) x 2.0" (51mm)
Weight is: 0.8lb (363g)
 Please click here to download user manual
Please click here to download instruction for AA Battery Adaptor
battery rack can hold up to:
- 8 pcs - AAA batteries
- 12 pcs OR 26- AA batteries
- Hold up more 14 cells because the 2 pcs AA adaptor located on C size battery section (7 cells per each section)
- 4 pcs - 9V block batteries
- 8 pcs OR 0 pc - C batteries
- Hold down to 0 cell because C size battery section was located by 2pcs AA adaptor
- 8 pcs - D batteries
|
7 AA cells are locate on C size battery section by AA adaptor |
Convert a C size battery section into 14 pcs AA size battery section by 2 pcs AA adaptor |
|
Hold up excluded 46 cells with AA adaptor (Additional 14AA cells on C size section, Please click picture for view larger picture) |
Hold up excluded 40 cells without AA adaptor (Please click picture for view larger picture) |
|
Included 3 pcs 357A( or LR44) button cell batteries. |
How to insert AA adaptor into c size battery section |
Testing batteries:
- Batteries maybe tested with the meter/tester in the rack, or it may be removed from the rack for convenience. To test AAA, AA, C, D Size batteries, lift the battery compartment cover on the top of the Battery Rack.
- Slide the negative terminal and hold it there, then place a battery in the compartment according to the polarity symbols(+ and -)marked inside the compartment, then slowly release the bar.
- If only the RED indicator light is lit, the battery is weak and needs to be replaced or recharged. If RED and YELLOW indicator lights are lit, the battery's power is fair. If RED, YELLOW, and GREEN indicator lights are lit, the battery's power is good.
- To test 9V batteries, place the 9-volt battery terminal on the contact inside the battery compartment with the positive(+) terminal on the contact marked + and the negative(-) terminal on the contact marked 1. Press the battery down to get good contact.
- The indicators are the same as for other batteries.
Replacing Internal Batteries:
- When the power indicators light dimly or not at all during battery testing, follow these steps to replace the rack's internal batteries with three new 357A( or LR44) button cell batteries.
- Turn the Battery Rack over and use a screwdriver to remove the screw from the battery compartment cover, then remove the cover.
- Use the flathead screwdriver to gently pry out the three button cell batteries.
- Install three fresh batteries according to the polarity symbols (+ and -) marked above the compartment.
Warning:
- Dispose old batteries promptly and properly.
- Keep batteries out of the reach of children.
- Batteries are not included.
|
