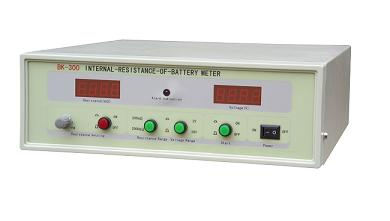

BK-300 Precision Internal Resistance Tester for All Batteries with 1 m-ohm accuracy

BK-300 Precision Internal Resistance Tester for All Batteries with 1 m-ohm accuracy


BK-300 is precision internal resistance meter for R & D or quality control of all rechargeable battery , which has accuracy upto 1 m-ohm and can measure battery from 0 - 19.99V. One battery holder is included and allow you measure cylinder cell and battery pack at easy

Specifications

  • Voltage:
    DC 0 ~~ 1.999V +/- (0.2% RD + 0.1% FS) resolution 1mV
    DC 2 ~~ 19.99V +/- (0.2% RD + 0.1% FS) resolution 10mV
  • Battery internal resistance:
    1m-ohm ~~199.9m-ohm +/- (0.3% RD + 0.5 m-ohm ) resolution 0.1m-ohm
    200 m-ohm ~~1999m-ohm +/- (0.3% RD +2 m-ohm ) resolution 1m-ohm
  • Adopt sine wave AC power with frequency of 1000Hz to carry out test on the battery internal resistance. AC current used for test is about 10mA
  • Applicable for internal resistance test of conventional capacitance single battery and its battery group.
  • Built-in standard precision resistance (50 m-ohm ), facilitating the user to calibrate the instrument test accuracy himself.
  • Capable of judging synchronously battery internal resistance and voltage, use microprocessor to set the upper / lower limit of the internal resistance and voltage alarm, outputting the audible and visual alarm.
  • Communication function, capable of transmitting data to upper computer, transmit the tested battery internal resistance and voltage to the computer by connecting with the computer, realize such functions as data saving, battery classification, etc.
  • Source supply: AC220V , 50/60HZ, dissipation < 10W, 110V is optional
  • Size (mm): 340 ( W ) x 110 ( H ) x 365 ( D ).

Battery clip and holder are included

Click below to dowload

Operation Manual
Price: $795.00
