About Battery Pack
- Made of 8 pcs High quality C size NiMH Cells , 5000mAh Capacity
- Dimension (LxWxH): 230mm (9.06") x 26mm (1.02") x 52mm (2.05")
- Weight: 600g (21.2oz)
- Work with most portable DVD player with 7.2 - 9.0 V DC voltage
- 5 pcs round plug tips included to fit most players. Please find right plug diameter to fit your player ( see left side picture ). Check for correct polarity as we are not liable for any damage due to wrong polarity.
- One Universal smart charger is included. Please select charging current at 1.8A, and the 9.6V battery pack will get fully charged in about 3 hrs
- The battery pack can be used for any 9.6V Dc device with Max. discharging current of 5A
- Also, the battery pack can be used as external portable DVD battery. May replaces battery as the following brand
- Audiovox 1700
- Audiovox DV-1680
- Mintek 1710
- Mintek 5830
- Mintek 5860
- Panasonic DVD-L10
- Panasonic DVD-L50
- Panasonic DVD-LA85
- Panasonic DVD-LA95
- Panasonic DVD-LV55
- Panasonic DVD-LV57
- Panasonic DVD-LV60
- Panasonic DVD-LV70
- Panasonic DVD-LV75
- Panasonic DVD-PA65
- Panasonic DVD-PV40
- Panasonic DVD-PV55
- RCA 5400P
- Samsung DVD-L100
- Samsung DVD-L200
- Toshiba SD-P1200
- Toshiba SDP-1500
|
|
|
|

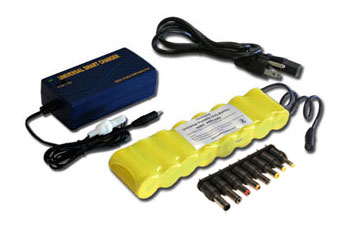

About the Multi-Current Universal Smart Charger
- Universal Fast Smart Charger for any NiMH /NiCd battery packs from 7.2V-12V
- 120-240Vac input for world wide voltage support.
- Using Pulse and Negative pulse technology ( 10% negative pulse ) to avoid battery overheating and polarized during fast charging, Significantly increasing battery pack's cycle life.
- Automatically detect battery pack's voltage, Red LED during charging. Green LED indicate fully charged
- Automatically cut-off by negative delta V when battery pack get fully charged.
- Two current levels, 1.0A and 2.0A, are selectable by a switch.
- For battery pack between 1100mAh and 2100mAh, please select the 1.0A setting
- For battery pack over 2100 mAh, please select the 2.0A setting
- Built in IC for Protection from short circuit & reverse polarity protection.
- Charging time is approx. 3 hours
- One standard Tamiya male connector installed with the charger. Ideal for charging all 6.0V, 7.2V, 8.4V, 9.6V and 12V RC Car, RC air and Airsoft battery packs .
- One set of Alligator Clip with female tamiya connector included for charging any battery packs.
- One connector adaptor from standard Female Tamiya to Male Mini Tamiya for charging RC air battery packs.
Smart Tip:
- If you would like to use this charger in car, you can choose our 110W DC-AC inverter, then you can charge your RC battery everywhere.
|
