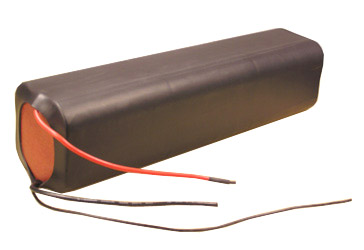

14.4V 13Ah (187 wh) F- Size NiMH Battery Pack (Square) with 3 wires

14.4V 13Ah (187 wh) F- Size NiMH Battery Pack (Square) with 3 wires


Packing
  • 14.4V 13Ah battery pack is made by 12 pcs high quality NiMH 13 Ah F size cell packed in 4x3 cells. Wrapped by heavy duty heat shrinkable tube
Voltage 14.4 V ( working ) 17.4 V ( peak)
Capacity 13 Ah or 187 wh
Charging Rate Standard 1.8 A Max. 2.1 A
Discharging Rate

Max. Rate for short time: 9 A limited by 9 Amp polyswitches

Protection
  • 9 amp polyswitch installed inside pack
  • 10K thermistor built in as temperature senor to avoid battery overcharged beyond 70oC
Prewired
  • 2 x 6" length 16 AWG wire for power.
  • 1 x 6" length 18 AWG wire for temperature sensor
Dimension 10.5" L x 2.6" W x 2.6" H
Net Weight 6.6 Lb

Smart Charger

Applications
  • Designed to run 12V DC motor with more power
  • Can run 30W / 12V super bright HID or halogen light for 6.2 Hrs ---
  • Perfect to run Halogen lights up to 60W for 3 hours
Smart Tips & Optional
Cautions
  • Please don't discharging the battery pack below 10V ( 1.0 V / cell) Deep discharging may damage NiMH battery pack.
  • Charging battery immediately every time it is discharged. Never storage the battery pack at below 30V.
  • Please read more safety warning at the link before buying

Price: $259.95
