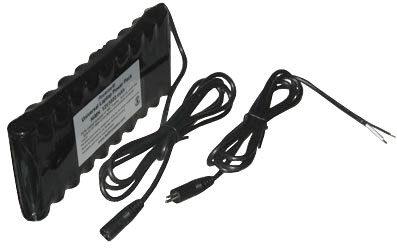

12V 3500mAh NiMH (P-1000) Flat Battery Pack 12V DC Devices + Male Connector

Packing

Universal battery pack made of high quality NiMH 10x 4/3 A cells of 3500 mAh capacity.
Wrapped by heat shrink PVC tube

Voltage 12V ( working ) 14.5V ( peak)

Capacity 3500 mAh or 42 wh

Charging Rate Standard 1.8 A

Discharging Rate

Standard rate: 2 Amp ( Recommended and warranted)
Highest rate for continuous running: 3.5 Amp
Max. Rate for short time: 7 Amp ( Not recommend as working rate )

Protection

70^oC thermostat built in the pack to protect battery from overcharged and over discharged

Pre-wired

Charge/Discharge terminal: 3.5' long two pin universal female plug installed with the battery pack

Large female pin = Positive
Small female pin = Negative

Included 3.5' long two pin universal male plug for you to connect battery pack to your device / charger

Large male pin = Positive
Small male pin = Negative
Must plug to the pack with correct polarity

Dimension 6.5" L x 2.7" W x 0.7" H

Net Weight 1.3 lb

Smart Charger

Compact Smart Charger (0.4 A ) for 12 V - 16.8V NiMH/ NiCd Battery Packs (10 hrs charging time)

Plug two pin male universal plug of the charger directly to two pin female universal connector of the pack

Compact Smart Charger (0.6 A ) for 7.2V - 12 V NiMH/ NiCd battery pack (7 hrs charging time)

Plug included two pin universal male connector to the pack
Then connect the Black&White wire by charger's alligator clip

Black wire to Black alligator clip
White wire to Red alligator clip

Applications

Good for any 12V DC portable device, such as power source of heated clothing, vedio camcord battery pack etc
Fit to any 10-12V DC input laptop computers, such as IBM Thinkpad, Toshiba, Sony and NEC etc. ( Please check your original battery voltage before purchase, if battery voltage is NiMH battery pack has no memory effect, and is assembled with poly-switch and thermo-stat to protect overcharging / oversdischarging . Can be recharged up to 1000 times.

Smart Tips & Optional

You may choose extra battery pack without smart charger in product option
Connect the battery pack to a DC-DC (15V-24V) converter, you can run all type of Laptop and DC device from 15V - 24V
Need a battery pack with more energy ? please see here

Cautions

Please don't discharging the battery pack below 10V ( 1.0 V / cell) Deep discharging may damage NiMH battery pack.
Charging battery immediately every time it is discharged. Never storage the battery pack at below 30V.
Please read more safety warning at the link before buying

Application example

How to connect with the included two pin universal male plug for your device / charger
