Automated Electric Shock Tester for max. battery weight 10 Kg (UN 38.3.4.4 )

Your Price: Call for Price & Welcome to our lab for the demo.
In Stock

Product ID # 8287
Part Number:
BS-049



A computerized automatic shock tester designed for testing Li-Ion battery cells or packs according to the 38.3.4.4; Test T.4: Shock section of the UN38.3 standard. This section tests batteries under the simulation of possible impacts during transportation with the pack or cell subjected to an acceleration of 150 gn with a duration of 6 milliseconds ( 50 gn with 11 milliseconds for larger packs or cells).

The shock tester is capable of handling battery packs up to 10Kg (22 lbs) and displays the peaks of the shock pulses in half-sinusoidal graphs.

Specification:

Input Voltage  208-240V AC, Single phase, 50Hz/60Hz
Power Consumption  550W, 2.5A
Shock Tester Structure
 Shock Tester
 Sample Stage Size: 250mm x 200mm
 This testing system consists of three units: shock frame with sample stage, shock propelling hydraulics, and shock control unit with PC & software.
  • Sample Stage Size:      250mm x 200mm (9.84" x 7.87 ")
  • Shock Height Range:    50-910 mm (2" - 35.8")
  • Max. Sample Load:       10 kg (22 lbs)
  • Max. Sample Load: 10 kg (22 lbs) or smallerMax. Sample Load: 10 kg (22 lbs) or smaller
  • Shock Pulse Time:        0.5 -30 ms (half-sine wave);  programmable
  • Max. Acceleration:        200  - 1500 m/s2 (half-sine wave); programmable
  • Shock Direction:           Vertical
  • Brake Device:               Built in brakes to protect from second time shock
  • Electric operation:         Up and Down
  • Pneumatic Break:          Stop the operation

Control Unit
 Control Unit

  • Operation software is included compatible with MS Windows 7
  • Desk-Top PC and Monitor with installed software in control unit
  • Wave Type: Half-Sine Wave

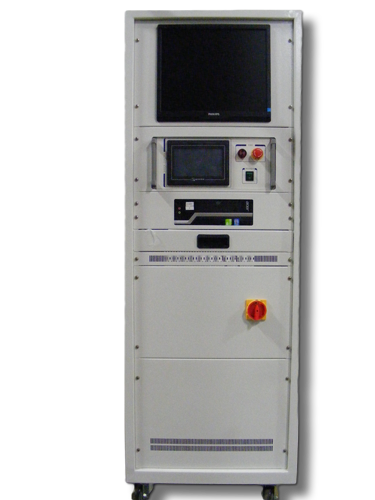

       Control PanelControl PanelControl PanelShock Conroller PanelShock Conroller Panel

Compress Air


 >7 ㎏/c㎡ compress air is required for the operation of this equipment, however, we are not inlcuding an air compressor in the standard package, please order one from your local hardware store.

Calibration

You may purcahse calibrated kit for shock equipment here

Dimensions

  • Shock Unit : 560 x 672 x1600 mm (22" x 27" x 63")
  • Control Unit : 580 x 800 x 1700 mm ( 23" x 31.5" x 67")
560x672x1600 mm580mm x 800mm x 1700mm

Weight

 458KG (1,010 lbs)

Shipping Weight & Dimensions

 Total shipping with two crated pallets via freight only

Standard Testing

 UN38.3 standard (38.3.4.4)

Video & User Manual


Available upon request

Warranty

  • One year limited manufacturer's warranty with extension warranty available upon request at additional cost.
  • On site installation and training for UN38.3 are available at additional cost.

Testing Criteria

 UN38.3 Li-Ion Battery Transportation Safety Testing Criteria
