Anti-Corrosive Digital Vacuum Gauge with Power Supply - Up to 1E-4 Torr

Your Price: From $465.00 to $565.00
Please email to sales@batteryspace.com for lead time

Product Options

Zero Point Calibration:


Stinger module provides the basic signal conditioning required to turn a convection vacuum gauge into a complete measuring instrument. A built-in display provides a convenient user interface for setup and operation of the vacuum gauge. Its platinum plated tungsten sensor wire can resist most of aggresive gases such as H2S, Ammonia, HCl, etc.

Note:
This is a NEW Anti-corrosive version, available since Dec. 2013
Every Stinger is calibrated with traceability to NIST standards in accordance with ISO/IEC 17025.

Specification:

 Features
  • Convection enhanced Pirani vacuum gauge module with on-board controller.
  • Wide measurement range 10-4 to 1000 Torr.
  • Bright LED digital display with measurement unit torr /mtorr
  • Includes built-in digital display, set-point relay, analog output.
  • Small Foot-Print.  with 1/8"NPT fitting  -- 48 mm diameter in front face x 104 mm Length
  • 9 pins D connector
  • Low cost, plug-compatible direct drop-in replacement for the most basic Granville-Phillips Mini-Convectron® models
  • Anti-corrosive version is available at extra cost
 Input Voltage for Power Adaptor  110V~220V
 Working Voltage for the Gauge  11 to 30 Vdc, protected against power reversal, transients, and over-voltages
 Output
  • log-linear 1 to 8 Vdc , 1V/decade, or
  • non-linear analog S-curve 0.375 to 5.659 Vdc (Helix/GP compatible)
 Measurement Range (signal)
  • 1x10E-4 to 1000 Torr
  • 1x10e-4 to 1333 mbar
  • 1x10E-2Pa to 133 kPa
 Display
  • 3 digit LED (3 digits from 999 Torr to 10.0 mTorr),
    • (2 digit LED from 9.9 mTorr to 1.0 mTorr), (1 digit LED from 0.9 mTorr to 0.1 mTorr)
 Materials Exposed to Gases  Anti-corrosive Version: Platinum-plated tungsten
 Operating Temperature  0 to +40ºC

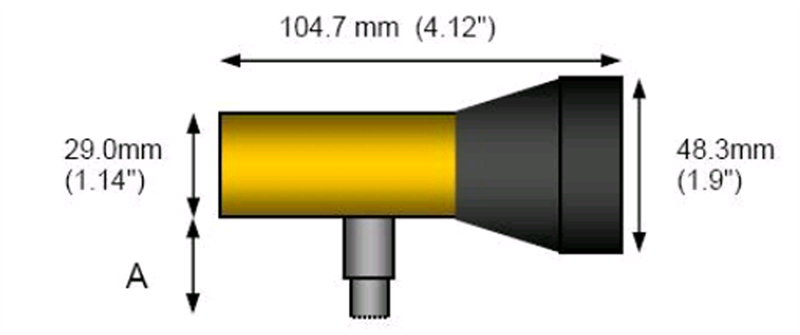

 Digital Vacuum Gauge Dimensions

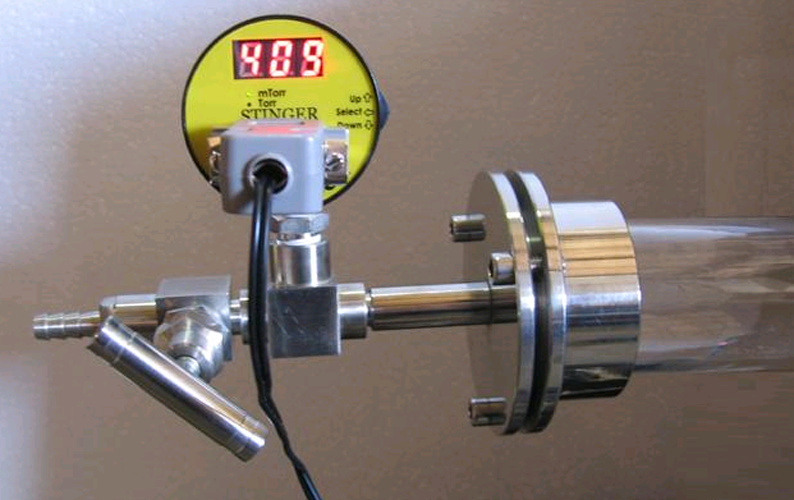

 Digital Vacuum Gauge on Vacuum Sealed Flange
 Compliance
  • Traceable to NIST standards in accordance with ISO/IEC 17025
  • CE certified
 Applicaton Notes
  • One 1/8"NPT-1/4"M14 adaptor is included to connect all MTI tube furnace
  • One 12V 500mA Dc power  and RS232 connector ( 9 pin D connector)  is included and ready to use
  • click to see conversion of pressure unit
  • You must calibrate "Zero Point" under 10-4 Torr before measuring vacuum system from 10-4 - 10-3 Torr, otherwise, the gauge may not display accurately in that range. For detailed calibration procedure, please refer to the operation manual below.
  • BatterySpace.com can help customer finish the "Zero Point" calibration before shipping upon customer's special request at extra $100.
  • Anti-corrosive version gauge can be used for aggressive gases such as Hydrogen sulfide, ammonia, etc.
 Operation Manual  Please download operation manual here
 Weight  136 g  (4.8 oz)
