Smart Charger (6.0A) for 25.6V LiFePO4 Battery Pack - CE listed

Your Price: $69.00
In Stock

Product ID # 5765
Part Number:
CH-L2596N



Quantity Discounts

QuantityAmount
5 to 20$66.93
21 to 50$65.55
51 to 100$64.17
101 or more$62.10

Features

Feature
  • Intelligent charger designed for 25.6 V ( 8 cells) LiFePO4 Battery pack with capacity >= 6 Ah
  • Built in cooling fan to ensure charger long service life
  • Built in IC to cut off power automatically when battery is fully charge
Input Voltage 100-240VAC, 50-60Hz, USA AC plug
Output Voltage 29.4VDC
Charging current 6.0 A, Charging time = (1.41 x Ah rate of the pack) / 6.0A charge current
Protection
  • Over Voltage protection
  • Short Circuit protection
  • Output reverse protection

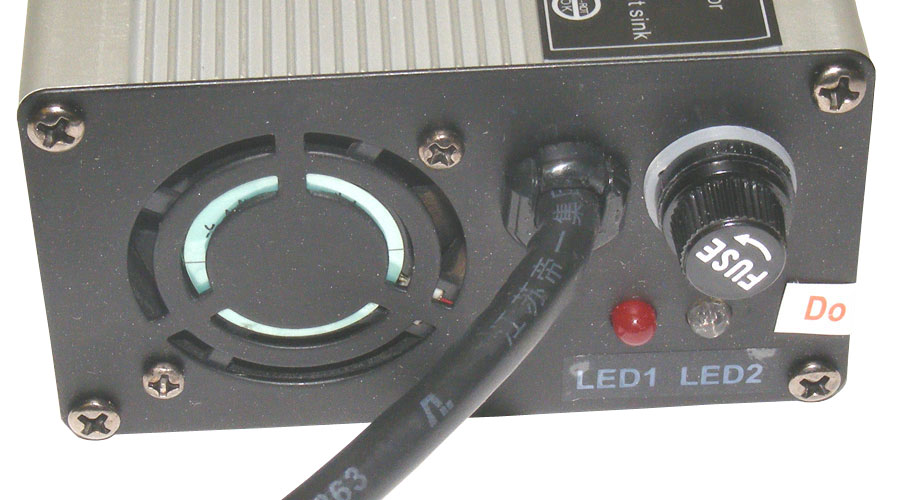

LED Indicator
  • LED1 = Red = Power On
  • LED2 = Red = Charging
  • LED2 = Green = Fully Charged
Connector
  • 4 pin female cannon plug
    • Charging terminal: Pin #1,2 = negative, Pin#3,4 = positive
Dimension(LxWxH) 190mm(7.5")x92mm(3.6")x52mm(2.0")
Weight 2.0 lbs 7.4Oz (1120g)
Certification CE Listed

Please download the Specification here

Accessories Included

Warnings

  • Please connect charger to AC power before connect to battery pack. Otherwise, the charger will NOT charge the pack and you will not get a RED LED indicate charging. Also, you must connect to battery within 1 minutes. Otherwise, you will need to unplug ac power and repeat the process again!
  • AC plug must be reset if disconnect battery > 3min
  • Only charge LiFePO4 battery pack with capacity > 6Ah. Don't use the charger for lower capacity LiFePO4 battery pack.
  • Only charge LiFePO4 battery pack with voltage 25.6V (8 cell pack). Don't use the charger for Lower voltage battery pack which may cause battery to explode
  • Indoor use only
  • Don't remove the case to prevent from electric shock
  • Unplug the charge from AC outlet after use.
