Smart Charger (1.5A) for 3.7V Li-ion/Polymer Rechargeable Battery Pack (5.5mmx2.1mm Barrel Plug) -- CE/UL listed
|
Out of stock
Part Number: CH-UNLI2-Barrel-M
Product ID # 4020
Quantity Discounts
| Quantity | Amount |
| 5 to 20 | $12.56 |
| 21 to 50 | $12.30 |
| 51 to 100 | $12.04 |
| 101 to 500 | $11.66 |
|
Smart 3.7V Battery Charger for Li-Ion Battery Pack.
-

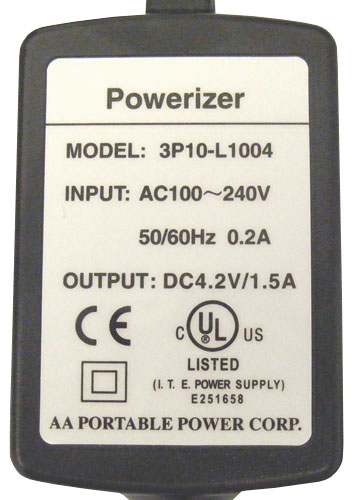

Manufacture part# 3P10-L1004
-
Designed for charging 3.6 V ( 3.7V Nominal) Li-Ion and Polymer Li-Ion battery pack with capacity > 1500 mAh
-
Input: AC 100--240V AC 50-60Hz 0.2A worldwide power acceptable
- 1.5 A Max. charging current. Power will be cut off automatically when battery fully charged at 4.2V
- Connector: 5.5mm x 2.1mm Male Barrel plug
- Charging mode: CCCV ( constant current, then constant voltage at 4.2V, cut-off power when current reduce to zero )
- Protection: Output shorted and overload protection
-
LED Indicator:
-
Red - Charging
-
Green - Fully charged
-
Efficiency: >70 %
-
Operate Temperature: -10oC(14o F) ~ +40oC(104o F)
-
Humidity: <+90
- Dimension(LxWxH): 80mm(3.2") x 53mm(2.1") x 30mm(1.2")
-
Weight: 6.6 Oz (190 grams)
-
CE / UL listed
-
Caution
-
Check battery polarity before connecting to charger. We are NOT liable for any damage due to wrong polarity!
-
This is for 3.7V Li-Ion/Polymer battery with capacity >1500mAh
-
Indoor use only! Please avoid water
-
High-voltage inside charger, Do NOT open the cover as it will void the warranty
-
One year warranty
|
5.5mm x 2.1mm Barrel connector
|
|
|

CE & UL listed Smart Charger
(Please click picture to view large size)
|
|
