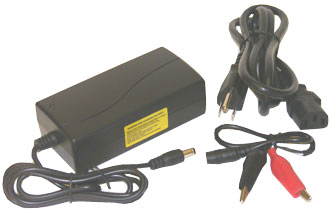

Smart Charger (1.2A) for 25.6V (8cells) LiFePO4 Battery Pack, 100-240VAC, CE listed

Your Price: $31.95
In Stock

Product ID # 5605
Part Number:
CH-LF25612



Quantity Discounts

QuantityAmount
5 to 20$30.99
21 to 50$30.35
51 to 100$29.71
101 or more$28.76
New Page 4
Feature
  • Smart charger designed to charge 25.6V LiFePO4 battery pack
  • CCCV charging mode, and power off when battery voltage reaches 29.2V
  • Stabilized output, low ripple
  • Charge time = (Ah rate of the pack x 1.41) / 1.2A charge current
Input Voltage
  • 100- 240VAC, 50/60 Hz
Input Power
  • 36W Max
Output Voltage
  • 29.2 VDC
Charging current
  • 1.2A
Battery Capacity to use
  • >= 1200 mAh
Protection
  • Short Circuit / Over-voltage / Output-reversed
LED Indicator
  • Red LED = charging
  • Green LED = fully charged
Connector
Accessories (Included)
Optional items to purchase
Size (LxWxH)
  • 120mm(4.7") x 60mm(2.4") x 38mm(1.5")
Weight
  • 14.8 Oz (420 grams)
Data Sheet
Certification
  • CE Listed
Warning
  •  Charge 25.6V LiFePO4 rechargeable battery >= 1200mAh only

  •  Do not expose the product to rain or humidity to prevent from electric shock

  •  It is normal if the product gets slightly hot in using

  •  Keep the product out of the reach of children

  •  Do not open the charger and touch any part of the product to prevent from electric shock
