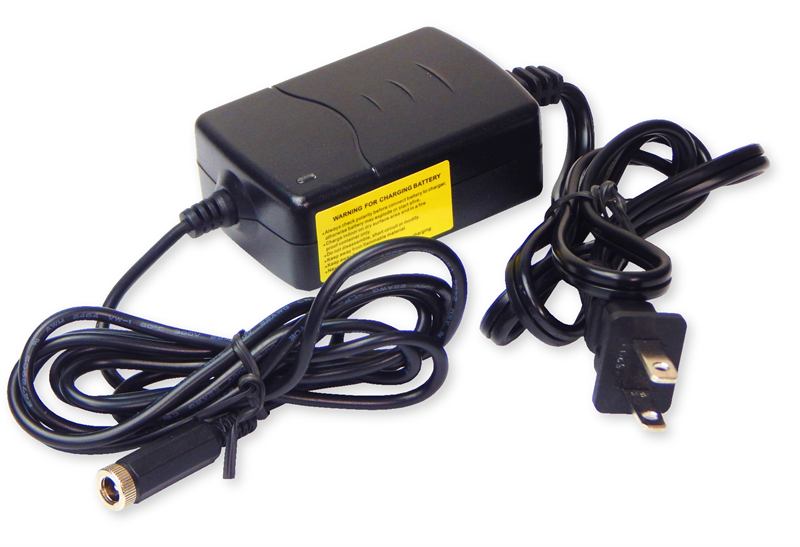

Smart Charger (0.7A) for 14.8V Li-ion/Polymer Rechargeable Battery Pack - CE -

Your Price: $24.95
In Stock

Product ID # 5989
Part Number:
CH-L14807



Quantity Discounts

QuantityAmount
5 to 20$24.20
21 to 50$23.70
51 to 100$23.20
101 or more$22.45

Features

Feature
  • Smart battery charger designed to charge 14.8V Li-Ion/Polymer battery
  • It use delta-V technology to monitor and control the charging process.
  • CCCV charging mode, and power off when battery voltage reaches 16.5V
  • Charge time = (Ah rate of the pack x 1.5) / 0.7A charge current
Input Voltage 110- 240VAC, 50/60 Hz
Input Power 20W Max
Output Voltage 16.8VDC
Charging current 0.7A
Battery Capacity to use >= 700 mAh
Protection Short Ciruit / Over-load
LED Indicator
  • Red LED = charging
  • Green LED = fully charged
  • Dim Green/no LED - you are trying to charge a fully charged battery.
    • Solution - discharge/drain the battery first and recharge again.
Connector
Dimension(LxWxH) 88mm(3.5") x 52mm(2.0") x 30mm(1.2")
Weight 4.9Oz (139grams)
Certification CE , Recognized or tested by one of NRTL (National Recognized Testing Laboratory) , for more information, please contact us
