Programmable Fast Thermal Test Chamber (- 75ºC - 150ºC, UN38.3.4.2 )

Your Price: Call for Price & Delivery

Product Options

Camber Size:


BS-003 is a Programmable Thermal Test Chamber for thermal test of Rechargeable Battery & Battery Pack according to UN38.3 ( 38.3.4.2 ) and other thermal test from -75ºC(-103ºF) to  + 150ºC(302ºF) at faster heating and cooling rate.

Specification:

Power
  • Voltage: 208 - 230VAC   ( 3 phased , 50/60 Hz)--   380V or 460V , 3 phase is available upon request
  • Current:  50A Max.
  • Power:  10 KW Max.
Test Chamber
  • Made of SS304 stainless steel with thermal insulation of foam polyurethane and fiber glass.
  • Inside dimension: 400mm(15.7") W X 500mm H X 400mm(15.7") D
  • Outside dimension: 920mm(36.2") W X 1360mm(53.5") H X 1070mm(42.1") D
  • Window: 220mm(8.7")  x 280mm(11.0")  x 40mm(1.6")    , 3 layers vacuum sealed
  • Operation Temperature:  programmable from -75ºC (-103ºF)  to + 150ºC (302ºF).
  • Temperature accuracy:  +/- 1ºC (33.8ºF)
  • Max. Heating & Cooling rate: 5ºC/min
  • Max. Cooling rate: 5ºC/min
Control Panel

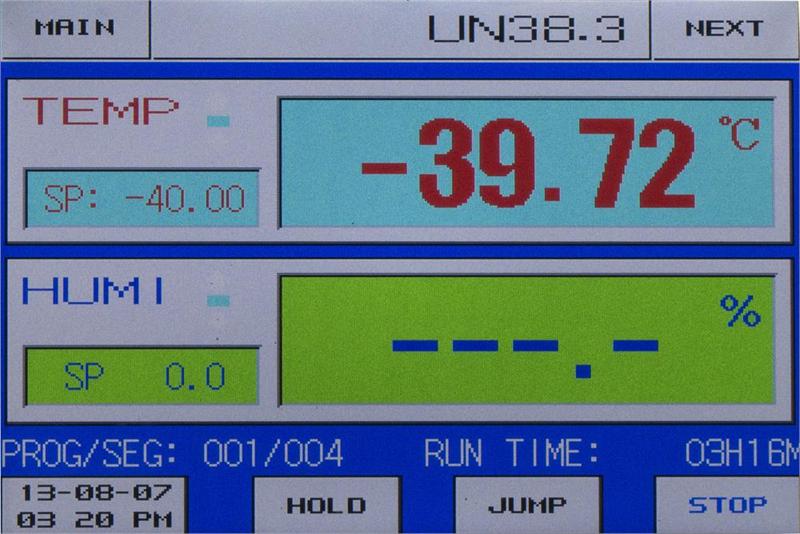

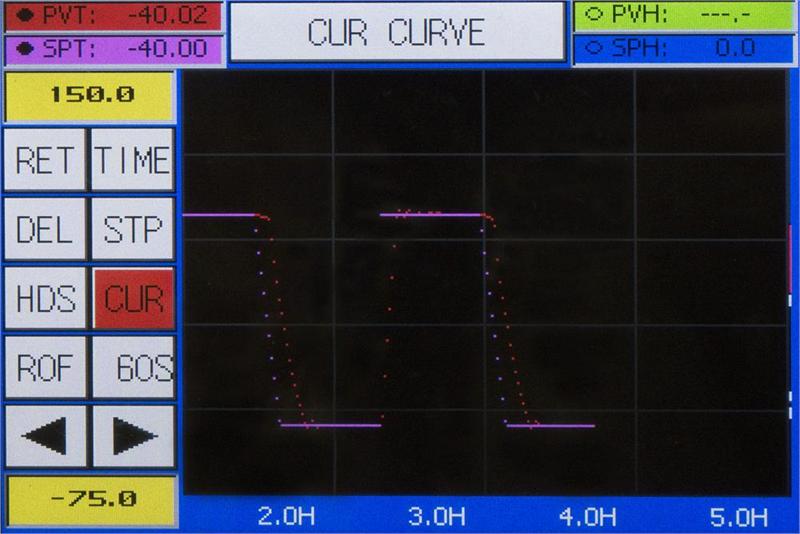

  • 6"(0.2") touch-screen control panel to set up program, and display temperature profile
  • 1200 segments programmable, and each program can be repeated up to 999 times
  • RS232 port and software are included to allow PC remote operation.
Cooling & Heating System
  • High quality refrigeration compressor made in France ( 1.5HP)
  • Refrigerant R404A, environmental friendly
  • Stainless heater tube
  • Built in beep alarm for over-heated and over-current
Power
  • Voltage: 208 - 230VAC   ( 3 phased , 50/60 Hz)--   380V or 460V , 3 phase is available upon request
  • Current:  50A Max.
  • Power:  10 KW Max.
Other Options The following options are available upon request
  • 150 Liters /39.6 gal:
    • Chamber 500x600x500 mm (19.7x23.6x19.7")
    • Overall 1080x1690x1010 mm (42.5x66.5x39.8")
  • 225 Liters /59.4 gal:
    • Chamber 500 x750 x 600 mm (19.7x29.5x23.6")
    • Overall 1170x1840x1030 mm (46x33x40.55")
  • 408 Liters /108 gal:
    • Chamber 600 x 850 x 800 mm (23.6x33.5x31.5")
    • Overall 1170x1950x1320 mm (46x76.8x52")
    • -40ºC to + 150ºC (+/- 2ºC)
  • 800 Liters /211 gal:
    • Chamber 1000x1000x800 mm (39.4x39.4x31.5")
    • Overall 1570x2070x1320 mm (61.8x81.5x52")
Video
Warranty
  • One year limited manufacturer's warranty with lifetime support; extended warranty available upon request at additional cost.
Testing Criteria

Certificate         CE

FAQ
Q: What is the different between product ID#7867, #7698 and #6710 ?
A:
#7867 is a heating chamber, it is only for thermal abuse, but you need control the time by yourself.
#7698 can support thermal abuse and short circuit. It can connect to the computer, so you can program the heating procedure.
#6710 can support all the test.  But according to T.2 of Un38.3 test, it will continue to run for over 125 hours. You can not use it when it is in testing.
