Powerizer 2-Channel Charger for 3.7V Li-ion Cells 14500/14650/17500/17670/18500/18650/18670 -- CE / PSE listed

Your Price: $16.95
In Stock

Product ID # 6005
Part Number:
CH-A1



Features

  • This is an unique product for Hobbyist and is suitable for multi-types Li-Ion cells of 14500, 14650, 17500, 17670, 18500, 18650, 18670. The smart charger can be use worldwide with automatic cut-off and is perfect for any application that uses single Li-Ion cell withoutpacking.
  • Charge 1 to 2 pcs 14500, 14650, 17500, 17670, 18500, 18650, 18670 3.7V rechargeable Li-Ion batteries.
  • Two independent charging channels and adjustable compartments
  • Safely charge two batteries of unequal discharge state or capacity at the same time as this independently monitors and controls the charge for each battery compartment.
  • LED indicates charging status:

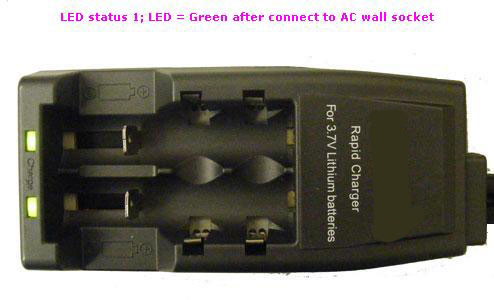

    • No cells insert. LED GREEN - charger is working properly!
    •  RED for charging and GREEN for fully charged
    • Cells are not suitable for charging, if the LED light is off
    • Note:  1 LED indicator for each channels
  • Built in power adaptor 100~240V universal voltage, worldwide power support.
  • Dimension(LxWxH): 140mm(5.5") x 64mm(2.5") x 30mm(1.2)
  • Weight: 140 grasm (4.8Oz)
  • CE listed & PSE Approved.

Specification

  • Manufacture part#WF-139
  • Input1: AC100-240V, 50/60Hz
  • Input2: 12VDC 450mA via DC socket, Excluded connector adaptor, please DIY
  • Output: 4.2VDC 450mA
  • Power-off:  Built in IC cut-off power automatically when battery reaches 4.2V
  • Charging time = Battery Capacity (mAh) x 1.5 / Charging Current (mA)
  • Operating Temperature: 32F-104F (0C-40C)

Warnings

  • Charge 3.7V  Li-Ion rechargeable battery of14500, 17500, 17670, 18500, 18650, 18670 only.
  • Never charge 17335 (RCR123A) Li-Ion cells
  • Never charge 3.2V LiFePO4 rechargeable cells
  • Never charge Li-Ion primary cells.
  • Don't expose the product to rain or humidity to prevent from electric shock.
  • Don't open enclosure to prevent from electric shock.
  • Charger shall be unplug from the power socket if it is not use from extended period of time.
  • It is normal if the charger get slightly hot while using.
  • Keep the product out of the reach of children.
  • Refer to authorized agent for any maintenance service.
