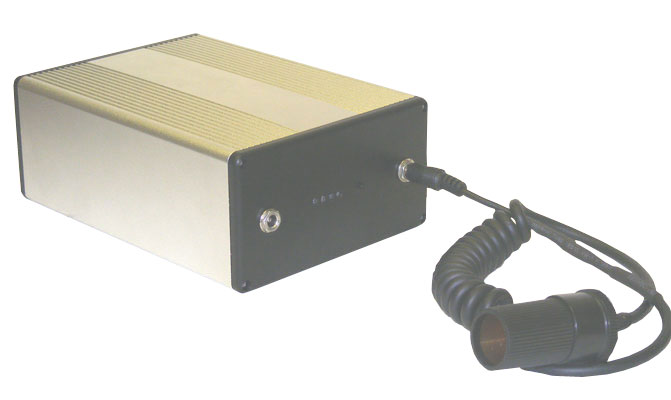

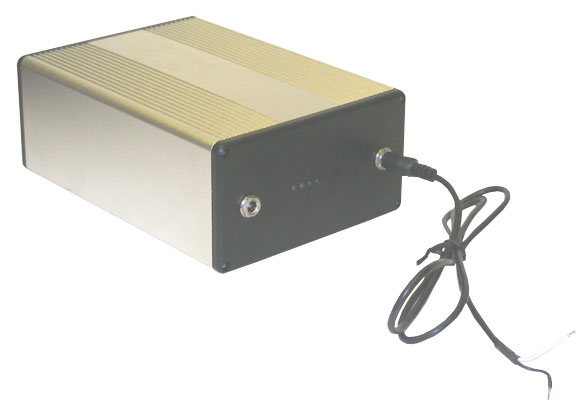

LiFePO4 26650 Battery : 12.8V 13.2Ah (168Wh, 16A rate) with CMB & display (15.84)

Your Price: $305.50
In Stock

Product ID # 5359
Part Number:
CH-AB12.8V13.2A-26650

Lead Time: 5 Business Day


Features

*Important Shipping Regulation This pack is for testing (prototype) only. It has not been UN38.3 tested yet.  Read more...
Packing
Prewired
  • Output (Discharging terminal): 5.5mm x 2.5mm x 12mm female Barrel Socket
  • Input (Charging terminal): 5.5mm x 2.5mm x12mm female Barrel Socket
Protection
  • 1x CMB (16A limited) installed with the  battery pack for perform smart charging and discharging protection
    • Smart Charging mode
      • CC (Constant Current) / CV (Constant Voltage) with cut-off input power when battery pack voltage reaches 14.6V
      • Max charging current is 3.0A
      • Note: Since the CMB installed inside battery pack will perform CC (Constant Current) / CV (Constant Voltage) charging, you don't need use our 12.8V LifePO4 Smart charger charge battery pack. Please use 16.0V- 18.0VDC  ( > 60W), 3.0A Max  DC power supply charge battery pack
    • Discharging protection
      • Overcharge (> 15.2V)
      • Over discharge  (<9.2 V)
      • Over drain ( >16 Amp)
      • Short circuits
Voltage
  •  DC Input (Charging mode):
    • Input power: DC 16.0V - 18.0V  ( > 60W), 3.0A Max
    • CC (Constant Current) / CV (Constant Voltage) with cut-off input power when battery pack voltage reaches 14.6V
      • CC/CV, CC = 3.0A, CV = 3.65V Max per cell
  • DC Output (Discharging mode)
    • Voltage: 12.8 V (working)  15.2 V (peak)  10.0 V ( cut-off)
Capacity 13.2 Ah  (168.96 Wh)
Cycle life > 1000 cycles (80% of initial capacity @ 0.2C rate, IEC Standard) (5 times more than SLA)
Charging rate 3.0 A Max  limited by CMB (16A limited)
Max. Discharging Rate 16.0A Max limited by CMB (16A limited)
Dimensions(LxWxH) 184mm(7.2")x 125mm(4.9") x 67mm(2.6")
Weight 1769grams (3.9lb)

Warnings

  • 12.8V LiFePO4 battery pack shall be cut-off at 9.2 V during charging and 15.2V during discharging
  • Must charge the pack by DC charge method via only charging terminal.
  • Since the battery pack have a CMB installed to perform a smart charging, Please don't use any 12.8V LiFePO4 smart charger for charge battery pack
  • Please click Knowledge on LiFePO4 battery to learn more detail

Related Products




  • Note: Since the CMB installed inside battery pack will perform CC (Constant Current) / CV (Constant Voltage) charging, you don't need use our 12.8V LifePO4 Smart charger charge battery pack. Please use above recommended DC power supply charge battery pack
