LiFePO4 Prismatic Module: 3.2V 90 Ah, 10C Rate (288 wh), CE Listed / UN Approved (DGR)
|
|
In Stock
Product ID # 4991
Part Number: LFP-P90Ah
Quantity Discounts
| Quantity | Amount |
| 5 to 20 | $160.05 |
| 21 to 50 | $156.75 |
| 51 to 100 | $153.45 |
| 101 or more | $148.50 |
|
| Chemistry
|
LiFePO4 in prismatic case
|
| Nominal Voltage
|
Average 3.2 V (working) 3.65V-3.8V (peak ) 2.5 V ( cut-off low)
|
|
Capacity
|
90Ah (288 wh) at 1C rate
|
| Energy Density
|
90Wh/kg
|
|
Charging current
|
- 1C rate (90A) Recommended
- 3C rate (270A) Maximum charging rate
|
| Discharging current
|
- Constant discharge current: 180A (2C rate)
- Impulse discharge current (<10sec): 900A (10C rate)
|
| Terminal
|

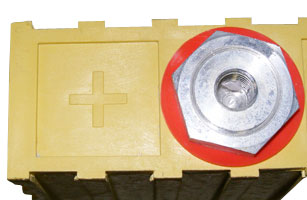

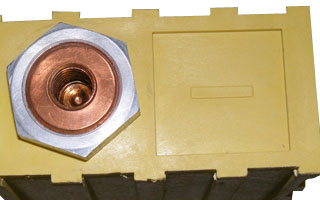

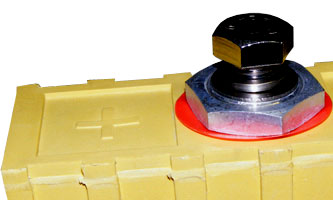

- M12.0mm Matrix screw terminal
- Included2 pcsM12.0mm Matrix screw
- Included 1 pc Copper Bar
- Utilize for make a series / parrallel connection between 2 cells
- Bar dimension (LxWxH): 90mm(3.5") x 30mm(1.2") x 3mm(0.1")
|
| Dimensions (LxWxH)
|
- 145(4.53") x 68mm(2.8") x 220mm(8.7")
- H with screw: 240mm(9.4")
- W with Copper Bar:117mm(4.6")
|
| Weight
|
3.2 kg (7.04 lbs)
|
| Operation Temperature
|
- Charging: -20'C (-4F) - 60'C(140F)
- Discharging: -20'C (-4F) - 60'C(140F)
- Self-discharging <3% monthly
- Temperature Durability of case =< 250'C(482F)
|
| Cycle Performance
|
2000 (80DOD%@0.2C rate, IEC Standard) / 3000 (70DOD%@0.2C rate, IEC Standard)
|
| Applications
|
small EV or big robot
|
| Detail Data Sheet
|
 Please click here to download the specification
|
| Smart charger
|
|
|
Cautions
|
-
This LiFePO4 3.2V module does not have PCM for protection. Do NOT discharge battery below 2.5V, and always store battery above 3.0V
- To form a high voltage battery pack, please choose our
 advanced LFP BMSto monitor and control each module for safety and long service life
-
|
| Warranty
|
|
|
