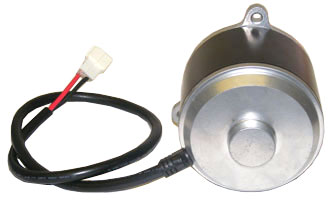

DC Motor: Heavy Duty 24V DC Motor 450W, 2600RPM

Your Price: $59.95
In Stock

Product ID # 5376
Part Number:
MT-24V2600



Quantity Discounts

QuantityAmount
5 to 20$58.15
21 to 50$56.95
51 to 100$55.75
101 or more$53.96
Feature:
  • Manufacture part# XYD-6B
  • High Torque , Heavy Duty 24V DC Motor for Hobby Projects
  • Perfect  for Hi-Power RC Boats, RC cars, School Projects, Robots and Other Hobby Projects.
  • 2600 +/- 10% Max RPM
Specifications:
  • Input Voltage: 24.0VDC
  • Rotation: CCW
  • No Load Condition:
    •  RPM = 2000
    •  Output current = 1.5A
  • Load Condition
    • RPM = 2650 +/- 10%
    • Output current = 26A Max
  • Ball Bearing both ends
  • Prewired: 2' long 12AWG wire with DJ7021 connector
    • Need to DIY? You may disconnect the connector and connect with open wire end
      • Red = positive
      • Black = Negative
  • Max Dimension (LxWxH): 116mm(4.6") x 110mm(4.3") x 116mm(4.6")
  • Weight: 2570 grams (5.67 lbs)
  • Operating Temperature:   -10'C (14F) Min, 60'C (140F) Max
  • Elevation: No impact
  • Humidity: 75%
  •  Please click here to download specification with drawing diagram
Related Products:
  Back View of Motor

Prewired with DJ7021 connector
