Computerized 8 Channels Battery Analyzer / Cycler (10A30V/channel, 2400W ) with Laptop for all type of Rechargeable Cells & Electrodes

Your Price: $12,950.00
In Stock

Product ID # 4333
Part Number:
BA8-30V10A

Personalizations

* denotes required field

Input Power*


Quantity Discounts

QuantityAmount
5 to 20$12,561.50
21 to 50$12,302.50
51 to 100$12,043.50
101 or more$11,655.00
BA8-30V10A is a CE certified 8 channel battery analyzing system for Li-ion, LiFePO3, Ni-MH, Ni-Cd, and Lead acid battery packs with up to 30V and 10A per channel. This battery analyzer is designed according to the international standard: each channel has an independent constant-current source and a hardware constant-voltage source. Constant-current source and constant-voltage source can be programmed and controlled by user. With plug-and-play module design, user can freely remove and add module units without interrupting other units. A brand new Laptop computer with Windows 8 and operation software is included for immediate use.

Specifications:

Working Voltage 110 V AC or 220 - 240V AC, 50/60Hz, Single phase
Max. Power Consumption 2.4KW
Voltage measurement
  • Range: 0.03 - 30 V
  • Accuracy: +/- (0.1% of reading + 0.05% of range)
Current measurement
  • Range: 0.01 - 10 A
  • Accuracy: +/- (0.2% of reading + 0.1% of range)
Time Range 0 - 999 seconds
Cycle Measurement Range 1 - 9999 times
Input Impedance ≥ 10 m-ohm
Port Network
Channels
  • Eight independent programmable channels
  • Each channel can set different working modes and works independently
Software
  • Windows-based software interface for easy operation
  • Uses standard SQL data-base management
  • Real-time monitoring windows and integrated graph/data windows
  • can set various working modes for measuring capacity and cycle life of all types of rechargeable batteries, such as:
    • constant current discharge, constant current charge, constant voltage charge, rest, as well as voltage, current, time, capability, negative voltage slope, and other limit conditions

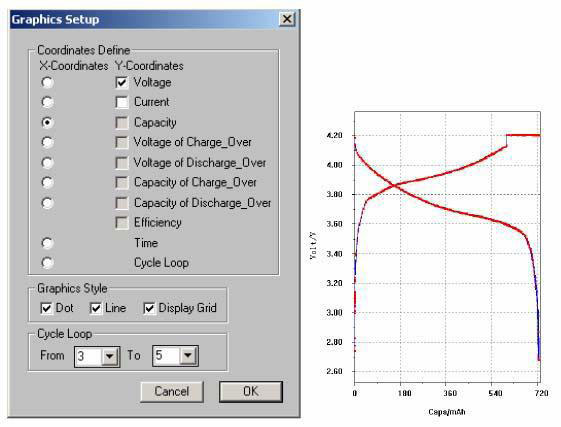

  • The user can define the curve by different types such as voltage-time curve, current-time curve, capacity-voltage curve, loop times-charge/discharge capacity curve, loop times-charge/ discharge efficiency curve, etc. to make curves be compared both by visually and statistically
  • Provide timely instructions, warnings, and intelligent support
Record
  • Complete test process record (log function)
  • Intelligent power failure protection:
    • If power fails during the testing, the system will shutdown all running channels. Once power recovers, it will automatically resume those stopped channels and ensure that the test is normally conducted and the data will never lose any cases.
Battery Holder
  • Alligator clips with cable and Spring load holder with adjustable length (for analyzing flat or cylinder batteries)
  • Please click the picture on the left to see the cylinder battery sample holder with height adjustment:
Product Dimensions 26"(L) x 20"(W) x 20"(H)
Compliance CE Certified
Warranty One year limited manufacture warranty with lifetime support
Application Notes Please click here for safety precautions of operating battery analyzers
Net Weight 90 kg (200 lbs)

Standard Pakage:

Part Description Qty
Main Machine Battery Analyzer 1
RS232 Cable For connectivity to computer 1
Software Test-Control software 5.3 and Calibration included in disc 1
Alligator For connecting battery 8
RS232 to USB Cable For computer without (RS232) serial port 1
Power Cord AC wall outlet to equipment 1
Laptop Computer Preloaded with software for immediate use 1
