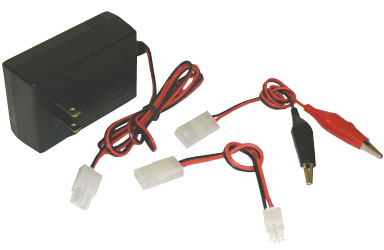

Compact Smart Charger (0.6 A ) for RC Car 7.2V - 12 V NiMH/ NiCd Battery Pack --- UL / CE listed

• Manufacture part# H01200006-US-1
• This Universal Smart Charger is good for any NiMH /NiCd battery packs between 7.2V to 12V
• 100-240VAC input for worldwide voltage support
• Compact size. Directly plug to wall socket and easy to carry.
• Charging current is 600 mA
• Designed for slow charging 7.2V-12V  NiMH and NiCd Battery Pack. Built in IC will recognize battery pack voltage ( from 7.2V- 12V ) and automatically apply appropriate charging voltage without setting.
• Ideal for RC air battery pack and battery pack with capacity < 4000 mAh
• Using Pulse and Negative pulse technology ( 10% negative pulse ) for charging to protect battery from overheating and polarized during charging. Significantly increase battery pack's cycle life.
• Automatically detect battery pack's voltage, Red LED on during charging.
• Automatically cut-off by negative delta V when battery pack get fully charged.
• Protection fuse for over current, short circuit & reverse polarity protection.
• Charging time from approx. 30 mins to 100 mins depending on the capacity of battery.
  • For 3000 mAh battery pack, charging time is about 5 hours
  • for 2000 mAh battery pack , charging time is 3.5hours.
  • For 600mAh battery pack , charging timer is about 1.2 hrs
• Charging terminal: 3' 7" long 22AWG Standard Female Tamiya plug

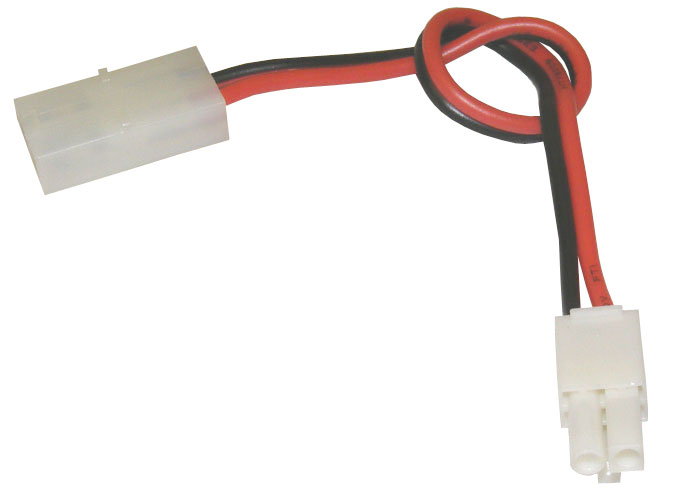

  •    Included one connector adapter from standard Male Tamiya to Female Mini Tamiya for charging RC Car  battery packs. (Please click picture to enlarge)
  •  Included one pcs connector adaptor, convert from Standard Male Tamiya plug to alligator Clip for charging any battery packs.  (Please click picture to enlarge)
• Dimension (LxWxH): 3.2" x 2.1" x 2.1" include plug (without plug 1.2")
• Weight: 4.3oz. (122 g)
• UL / CE listed
•  Please click here to download the instruction manual


Operation Instruction:

• Make sure battery polarity is connected correctly (Red wire is positive)
• When the unit connect the AC source, the red LED and green LED flash for two times, then all off.
• After it connect the correct battery pack, the red LED will be on showing it is charging.
• After battery is fully charged, green LED will be on.

Precautions:

• Please don't use the charger for low capacity battery pack (<600mah).
• We are not responsible for any damage caused by charging other brand battery using this charger.
• Please selectthis charger forAirsoft gun battery, as the adapter inside is different.

Smart Tip:

• With this  battery holder ( 6 - 10 cells), you can use this smart charger to recharge a group of single cells  ( 6 - 10 pcs ).
• Need to charge 9V NiMH rechargeable cell? Please click here to order the connector adapter separately.

Warranty:

• This charger is protected by fuse, our warranty does not cover the fuse exchanges.



Back View with CE listed
