Compact Smart Charger (0.6 A) for RC Car 6V-12V NiMH/ NiCd Battery Pack --- UL / CE / FCC listed

Your Price: From $15.50 to $16.95

Product Options

Connectors:


Features

  • Manufacture part# H01200006-US-W1
  • This Universal Smart Charger is good for any NiMH /NiCd battery packs between 6.0V to 12V
  • 100-240VAC input for worldwide voltage support
  • 2.0A in-line fuse installed
  • Compact size. Directly plug to wall socket and easy to carry.
  • Charging current is 600 mA
  • Dimension (LxWxH): 3.4" x 2.1" x 2.1" include plug (without plug 1.2")
  • Weight: 4.8oz. (140 g)
  • UL / CE / FCC listed
  • This charger is protected by fuse, our warranty does not cover the fuse exchanges.

Functions

  • Designed for slow charging 6.0V-12V  NiMH and NiCd Battery Pack. Built in IC will recognize battery pack voltage ( from 6.0V- 12V ) and automatically apply appropriate charging voltage without setting.
  • Ideal for RC air battery pack and battery pack with capacity < 4000 mAh
  • Using Pulse and Negative pulse technology ( 10% negative pulse ) for charging to protect battery from overheating and polarized during charging. Significantly increase battery pack's cycle life.
  • Automatically detect battery pack's voltage, Red LED on during charging.
  • Automatically cut-off by negative delta V when battery pack get fully charged.
  • Protection fuse for over current, short circuit & reverse polarity protection.
  • Charging time from approx. 30 mins to 100 mins depending on the capacity of battery.
    • For 3000 mAh battery pack, charging time is about 5 hours
    • for 2000 mAh battery pack , charging time is 3.5hours.
    • For 600mAh battery pack , charging timer is about 1.2 hrs

Operation Instruction

  • Make sure battery polarity is connected correctly (Red wire is positive)
  • When the unit connect the AC source, the red LED and green LED flash for two times, then all off.
  • After it connect the correct battery pack, the red LED will be on showing it is charging.
  • After battery is fully charged, green LED will be on.
  •  Please click here to download the instruction manual

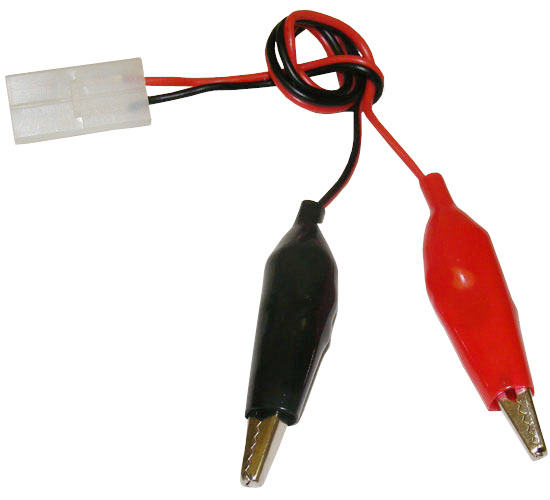

Connector Options

Warnings

  • Please don't use the charger for low capacity battery pack (<600mah).
  • We are not responsible for any damage caused by charging other brand battery using this charger.
  • Please plug in AC power first, then connect the battery to the charger, otherwise, there is no output from the charger.
