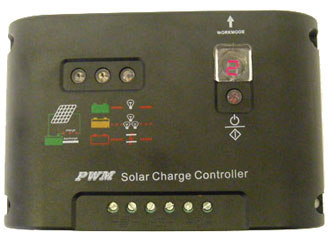

Solar Charge Controller (120W, 12V/24V Auto Detection, 10A Rate ) for SLA or LFP Battery

Your Price: $27.95
In Stock

Product ID # 6468
Part Number:
SC-10A



Features

Feature

PR-L2410 solar charger controller (Auto Voltage Detection) is designed for home solar power system with a solar panel rated < 170W for 12V/24 lead acid or 12.8V/25.6V LiFePO4 batteries rated <120W. It is important to include this controller in your solar power system due to following advantages:

  • Auto charge and cut-off power when 12V/24V SLA or 12.8V/25.6VLFP battery is full or low
  • Auto detect either 12V or 24V battery (must connect battery to controller first, otherwise the controller will not operate correctly!)
    • After connect battery to controller - LED Digit Display will show "0" for 12V or 12.8V and "1" for 24V or 25.6V for about 1-2 seconds, then off
  • Protect battery from overcharged and over-discharged to increase battery service life
  • Programmable Timer function to turn on load upto a max of 14 hrs after sunset
  • LED light to indicate battery storage level
  • Built in fuse to protect short circuit and wrong polarity connection
  • Moisture proof design for outdoor use
Dimension  140 mm x 90 mm x 25 mm
Weight  6 oz

Specification

Solar Panel Require 12-17V  < 170W
Battery Require 12V/24V SLA, 12.8V/25.6V LiFePO4 battery > 7Ah
Output Voltage  12V/24V DC (same as battery voltage)
Max. working current 10Amp
Overload protection >15A for 5 sec. and 30A if short circuit
Self Discharge rate <= 6 mA
Charging voltage drop <0.26V
Discharging voltage drop < 0.15V
Over-voltage protection 17V/ 34V
Low battery protection <11.1V / <22.2V
Smart charging Three stages floating mode
Max Dimension (LxWxH) 140mm (5.5") x 91mm (3.6") x 27mm (1.1")
Weight 250 grams (9.0Oz)
Working temperature -25oC - +55oC
Enclosure IP22 water proof, ABS materials
Warranty One year
User Manual Download user manual

Related Products



Related Products

Product Reviews

(1 Rating, 1 Review) Average Rating:
ratingratingratingratingrating
ratingratingratingratingrating
Nice selection of products and prices, and quick shipping with notification.
zerbel (Livermore, CA) 6/12/2012 5:29 PM
Nice selection of products and prices, and quick shipping with notification. solar charger's instructions were difficult - noticeably translated from Chinese. the load controller ended up shorting, and i can't figure out how i might reset it (every time i connect, even though it is providing voltage, it then starts flashing raplidly).
