Category : Wearable Rechargeable Cells

Lithium Polymer batteries (LiPo) offer several advantages. It has a greater energy density in terms of weight than Lithium Ion. In very thin cells (under 5 mm) LiPo also provides higher volumetric energy density. Additionally, there is more flexibility in cell sizes and shape with LiPo and a wider margin of safety, with superior stability in over-voltage and high-temperature conditions.

Major Features:
  • High energy density / High capacity High safety
  • High rate discharge performance
  • Special shape : Arc-shape, Trapezoid-shape, Rectangle-shape, I-shape, Narrow-shape
  • Best use of potential rooms of products and perfect for small portable electronics

Applications:
  • Bluetooth earphone;
  • Wristband, Smart-watch, Pedometer, Wrist healthy products;
  • Micro, smart and professional electronics;
  • Smart card, Medical equipment, Security products, etc.

The followings are examples of different shape of cells we can provide. Please email your drawings for price and lead time.

Rectangular Shape


Model Nominal
Capacity(mAh)
Voltage(V) Size (mm) Weight(g)
T(±0.3) W(±0.5) L(±1)
155526 110 3.7 1.5 55 26 1.8
156640 150 3.7 1.5 66 40 2.4
201030 45 3.7 2 10 30 1.2
250830 40 3.7 2.5 8 30 1.15
302530 180 3.7 3 25 30 3.9
400819 40 3.7 4 8 19.5 2
401382 400 3.7 4 12.5 82 8
1020122 60 3.7 1 20 122 3.5


Round Shapes


Model
Thickness/Dia/Height
Voltage(V) Nornimal
Capacity(mAh)
Thickness(mm) Diameter(mm) Drawing
582220 3.7 150 5.8 22

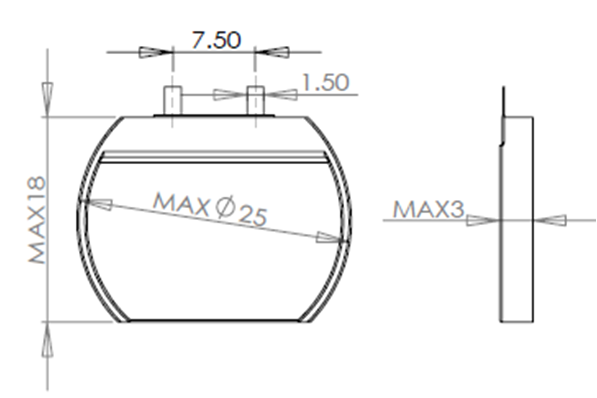

302518 3.8 105 3 25
253027 3.7 135 2.5 30

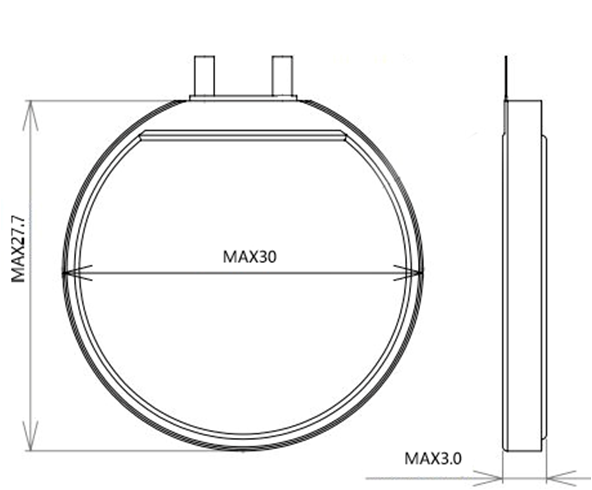

303027 3.7 170 3.0 30
353027 3.7 210 3.5 30
363027 3.8 225 3.5 30
403027 3.7 250 4.0 30
453027 3.7 285 4.5 30
473027 3.8 330 4.7 30
253535 3.7 220 2.5 35
303535 3.7 275 3.0 35
313535 3.8 330 3.1 35

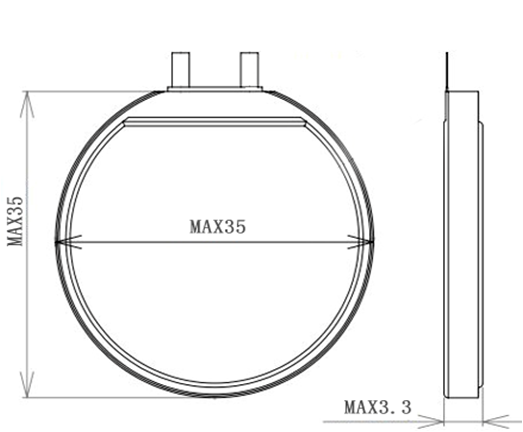

333535 3.7 300 3.3 35
353535 3.7 330 3.5 35
403535 3.7 390 4.0 35
453535A 3.7 450 4.5 35
453535B 3.8 490 4.5 35
553535A 3.7 580 5.5 35
553535B 3.8 600 5.5 35
703535A 3.7 725 7.0 35
703535B 3.8 785 7.0 35
604038A 3.7 825 6.0 40
604038B 3.8 880 6.0 40

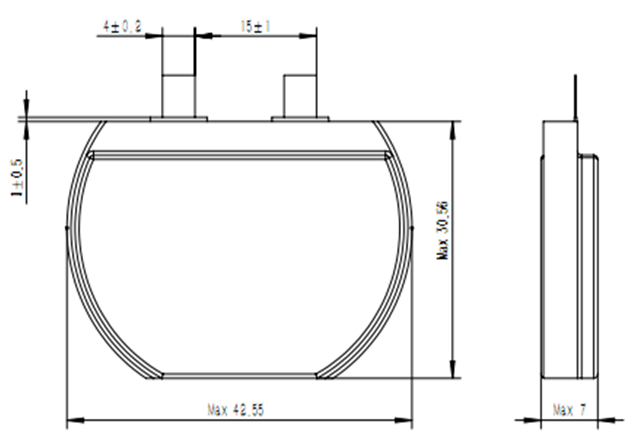

704230 3.7 835 7.0 42
755040 3.7 1500 7.5 50

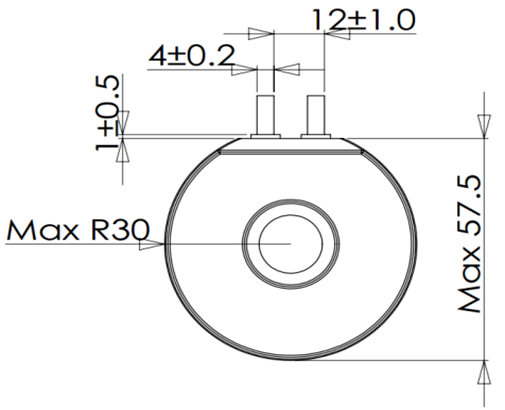

506057 3.7 1400 5 60

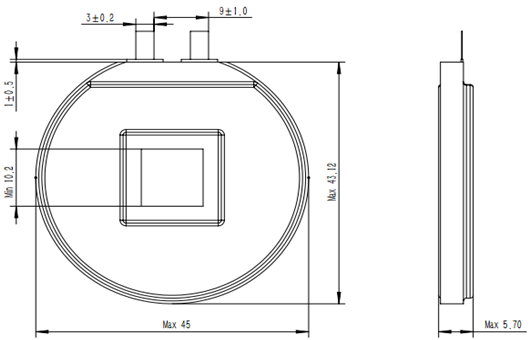

574543 3.7 800 5.7 45

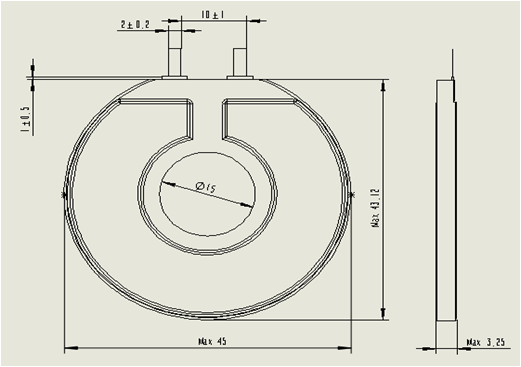

324543A 3.7 350 3.2 45
324543B 3.8 370 3.2 45

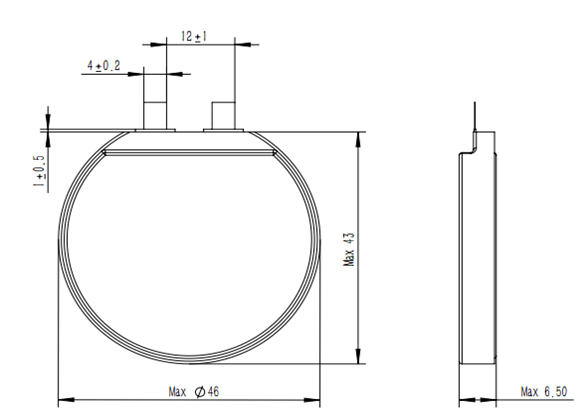

654643 3.7 1200 6.5 46

Other shapes

We can also provide other shapes of cell, like Curved cell, C-Shape cell, Narrow cell, Hexagon-shape cell, etc., please email your drawings.




---------------------------
