215L Vacuum Chamber (22 x 25 x 24") with Digital Pressure Control for Altitude Simulation (UN 38.3.4.1)

Your Price: Please email for price.
Lead Time: 1 - 3 months

Product ID # 8972
Part Number:
BS-056

Ship by Fedex Freight


BS-056 has a 215 L ulrea- larger vacuum chamber (22"x25"x24") with built in vacuum pump and control system designed for Battery Altitude Simulation Test based on UN38.3 standard (38.3.4.1) Also, it can be used as vacuum storage chamber with automatic control of vacuum pressure and no vacuum leaking.

Specifications
Power 110V/220VAC, 50/60Hz, upon request
Chamber
  • Heavy duty and explosion-proof stainless steel structure
    • Silicone door gasket and positive latch door ensure the good sealing
    • 3 stainless steel shelves are included to facilitate processing efficiency
    • 4" dia x 12 mm tempered glass window with explosion-proof film for easy observation

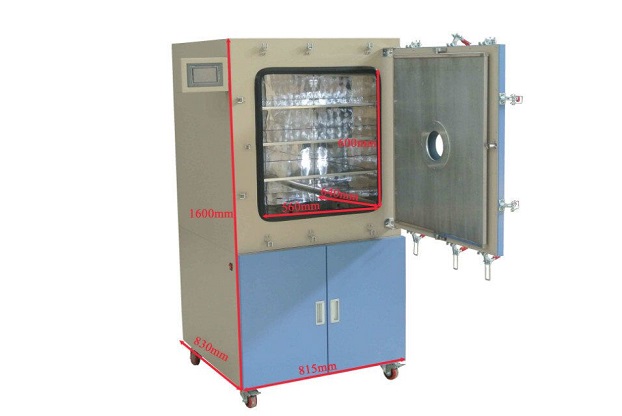

  • Inside dimensions:
    • Size: 560 mm x640 mm x600 mm ( 22"x25" x 24", 215 Liter )
    • Capacity: 215 liter
  • Working temperature: Room Temp. without heating
  • Vacuum Pressure: <0.2Kpa (1.5 Torr) by built in Mechanical pump
Pressure Control
  • Built in Vacuum pressure sensor to turn off vacuum pump at 11.6 KPa

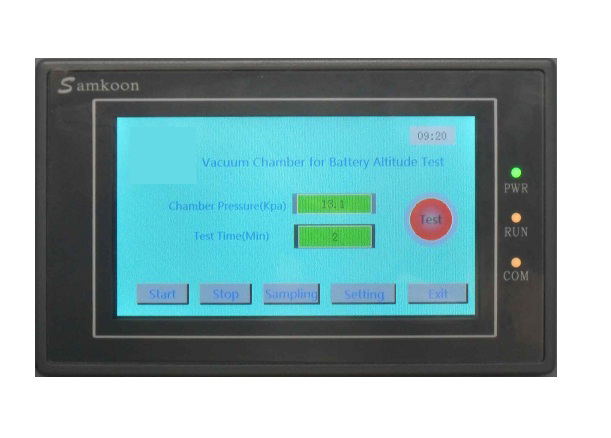

  • 6" Touch-screen PLC panel to control & display pressure and running time automatically.
  • Optional´╝Ü ( at extra cost )
    • Can add pressure setting programmable function upto 9 segments according to request.
    • Can add heating programmable function upto temperture of 250°C
Dimension (LxWxH)
  • 830 mm x 815 mm x 1600 mm (32.67 " x 32" x 63")
Accessories & Calibration
Compliance
  • CE Certified
  • All electric parts (except vacuum pump) are UL or equivlent certified and ready to pass UL, ETL, TUV tested on extra cost
Warranty One year limited warranty with lifetime support
Shipping Weight & Dimension
  • 47x39x80"
  • 758 LBs
Testing Criteria
